| Model NO. | D001003009D |
| Min. Order | 1 Piece |
| Port | Ningbo, China |
| Production Capacity | 5000sets/Month |
| Payment Terms | L/C, T/T, D/P, Western Union, Paypal, Money Gram |
| Size | Dn6, Dn8, Dn15 |
| Connection | Tri Clamp(50.5mm, 64mm) |
| Stainless Steel | AISI304, AISI316L |
| Application | Fermentation Tank |
| Working Pressure | 5bar |
| Flow Direction | Single Way |
| TAG | Hygienic Stainless Steel Manual Sampling Valve、 Stainless Steel Sampling Cock Valve、 Stainless Steel Food Grade Sampling Valve、 Food Grade Aseptic Sampling Valve、 Hygienic Manual Sampling Valve、 Hygienic Stainless Steel Manual Aseptic Clamp Sampling Valve、 |
Model NO. : D001003009D
Type (Channel Position) : Straight Through Type
Operation : Manual
Products Temperature : 100 Celsius Degree
Pressure : Low Pressure
HS Code : 8481804090
Trademark : XUSHENG
Specification : ISO, 3A, SGS
Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case
Origin : Wenzhou City, China

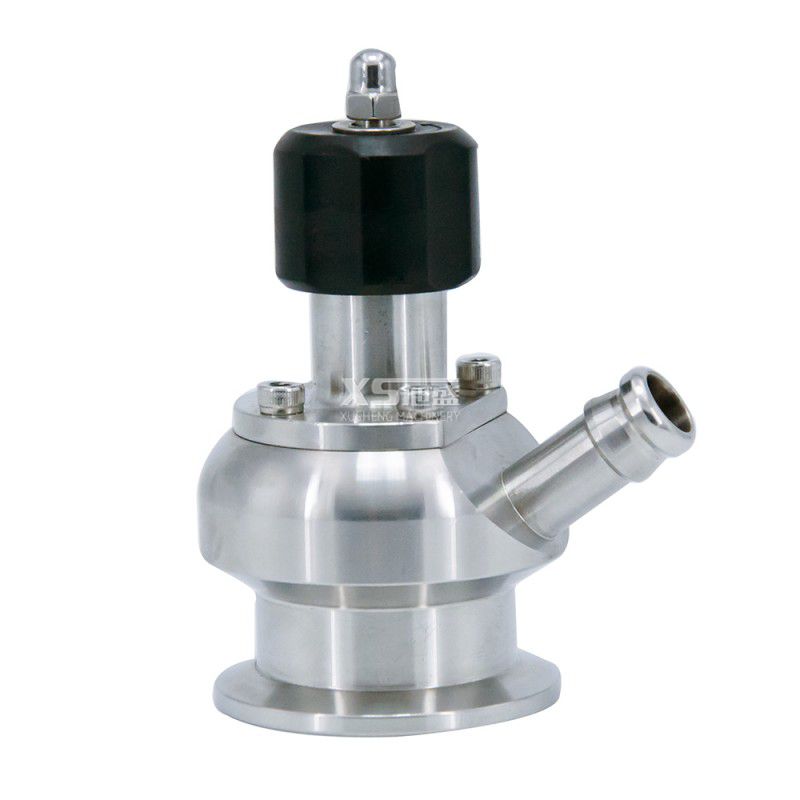

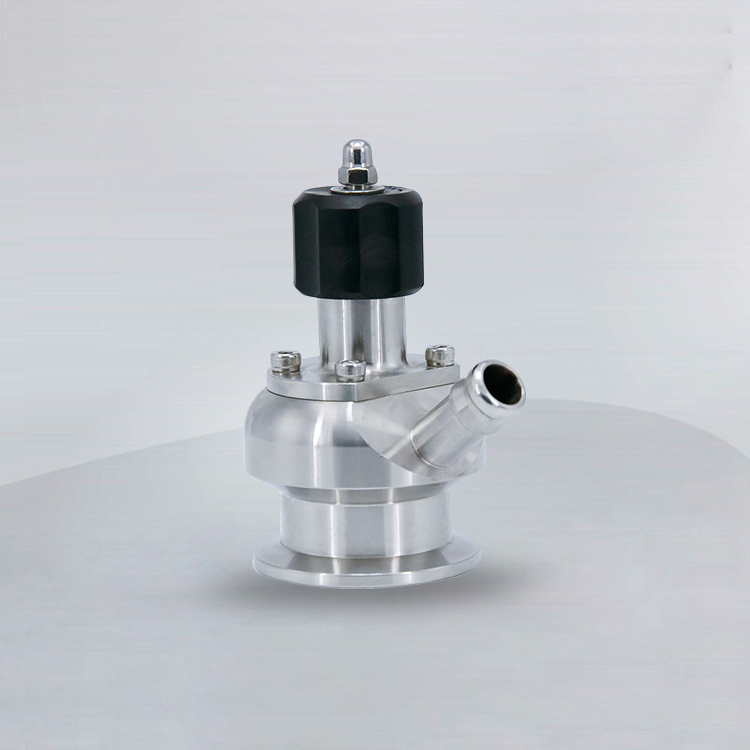

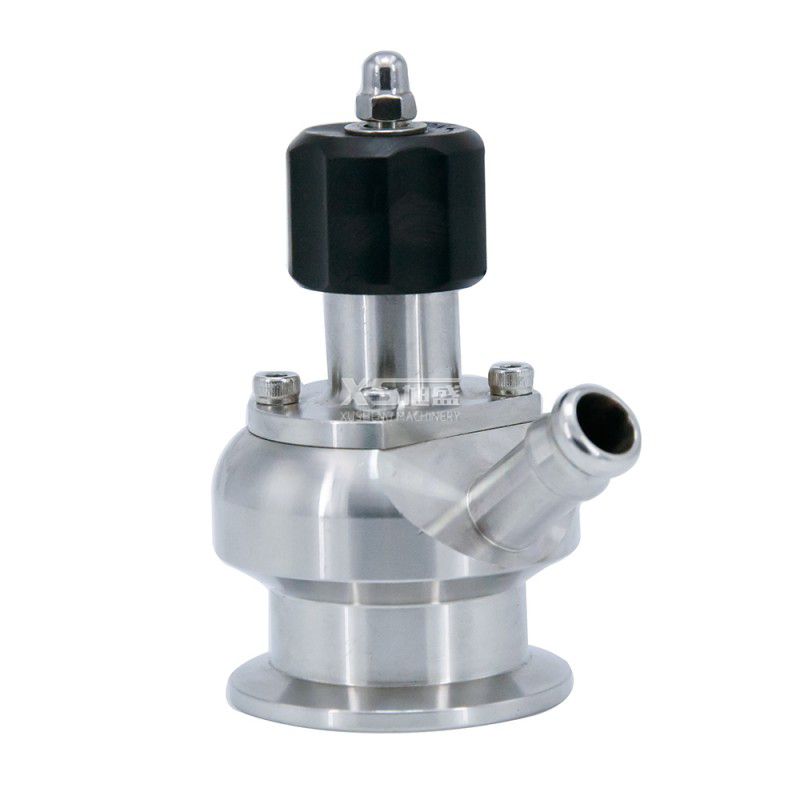

Products Name:New Style Stainless Steel 316L Male Aseptic Samping Valves
ss304 triclamp sample valve
sanitary stainless steel ss304 sample valve
Technical Parameter
| Material of Product Wetted | 316L (DIN-1.4404) |
| Material of Non-product Wetted | 304 (DIN-1.4301) |
| Seal material | PTFE/Silicone,PTFE/FPM (PV-1),PTFE (PV-2) |
| All seal materials comply with FDA 177.2600. | |
| Continuous working temperature | -20oC +135oC (EPDM) |
| Sterilization temperature | 150oC (Max 20min) |
| Working pressure | 0~10bar |
| Internal surface | Ra0.8μm |
| External surface | Shot blasting |
| Size | 1/2" 3/4" |
Applications
Its mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment.
Aseptic sampling valve has two configurations
1. Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective and easy to operate.
2. Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated by plastic hand wheel, and both angle and straight type structures are available.
Feature
1. 304 stainless steel,316L stainless steel
2. Silicone O-ring plus plunger to assure a leak proof connection
3. Surface finish polish to sanitary standards
4. Recommended usage in wineries
5. End connections available: clamp and NPT
6. Sizes available: 1" clamp and 3/8" NPT
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
