Model NO.:D011004001001D
Pur Qty. / Ref FOB Price
1 PieceUS $0.01-0.01 / Piece
Min. Order:10 Pieces
Port:Ningbo, China
Production Capacity:10000sets/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Material:Silicone,EPDM,VITON,BUNA,PTFE
Type:Food Grade Seal
Performance:Withstand High Acid and Alkali
Shape:O-Ring
Standard:Standard, Nonstandard
HS Code:40169310
Trademark:XUSHENG
Specification:ISO, 3A, SGS
Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case
Origin:Wenzhou City, China
Model NO.D011004001001D
Material QualityEPDM,Silicone,Viton,PTFE,NBR
Size1/2"-12",Dn10-Dn300,12.7mm-304.8mm
Temperature Range-55celsius Degree~250 Celsius Degree
Availabe StandardSMS,DIN,3A,Idf,ISO
EPDM GasketWithstand High Acid and Alkali
Availabe ColorWhite,Black,Blue,Grey,Ect
Application RangeMilk,Juice,Beer,Pharmacy,Dairy,Ect
Pressure Range0-10bar,0MPa-1.0MPa
Type of Sealing RingTri Clamp Ferrule,Butterfly Valve,Union
Type of Mesh Stainless Steel30mesh,40mesh,50mesh,60mesh,80mesh,100mesh,120mesh
HS Code40169310
TrademarkXUSHENG
SpecificationISO, 3A, SGS
Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case
OriginWenzhou City, China

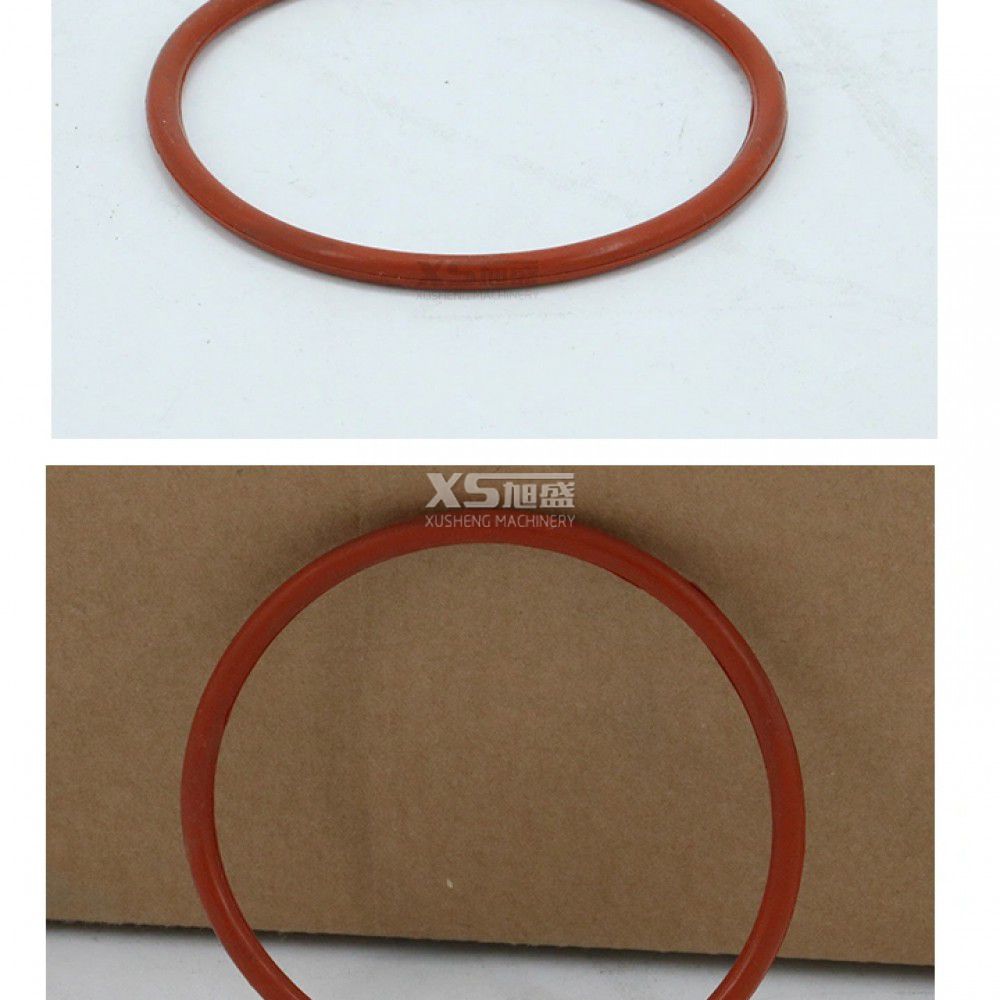

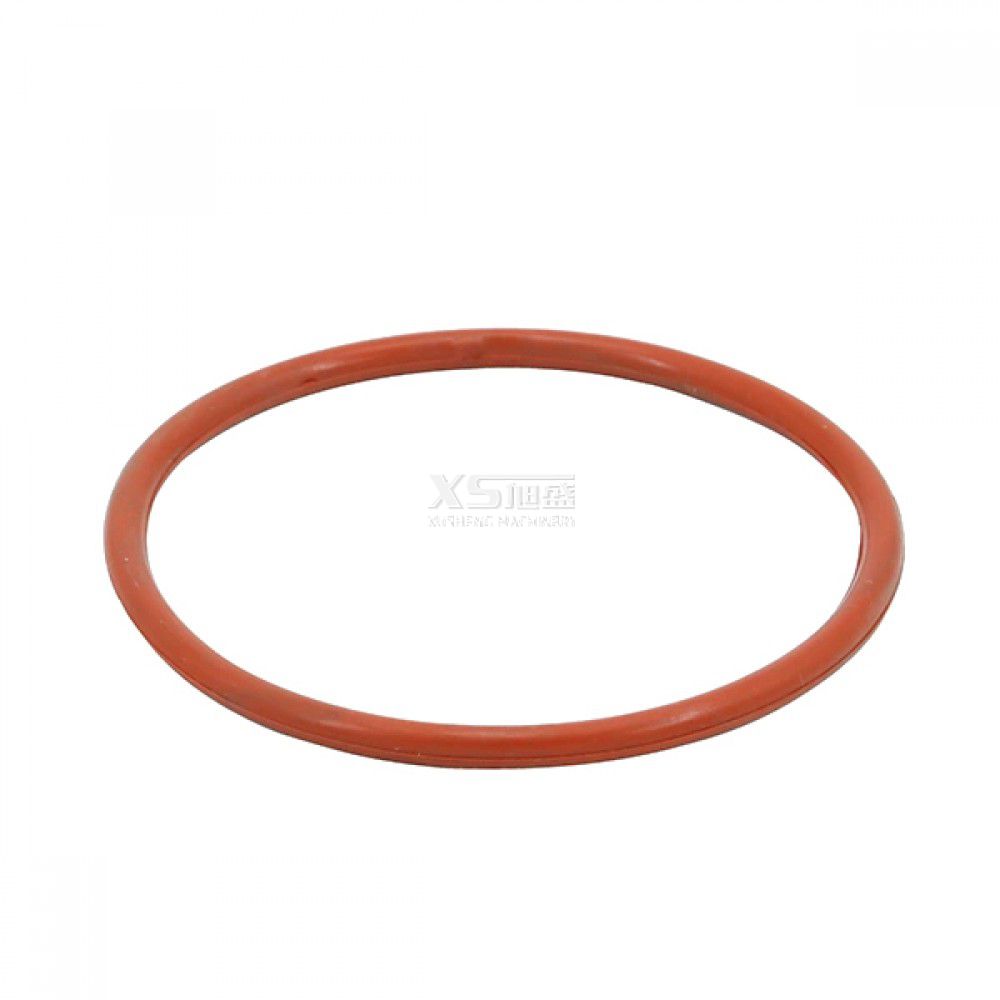

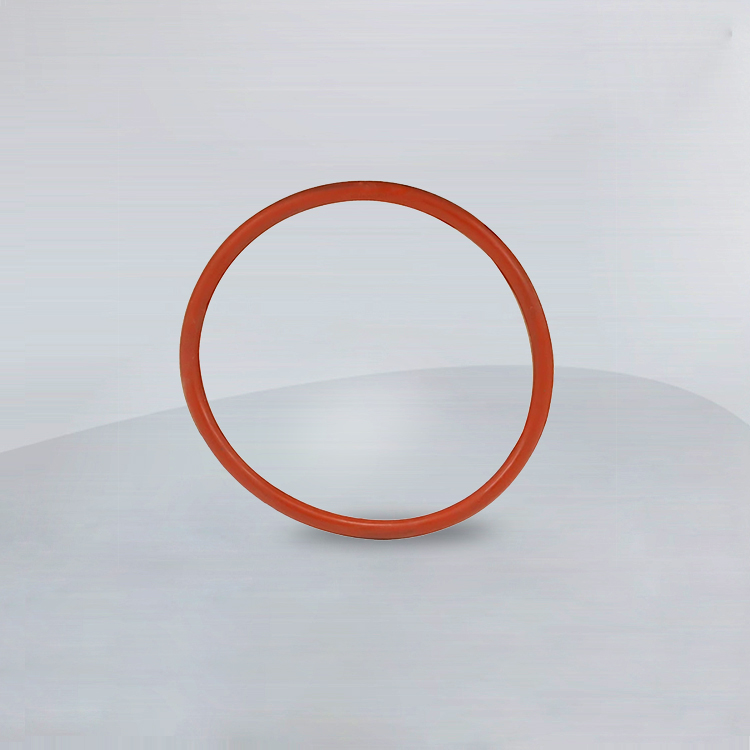

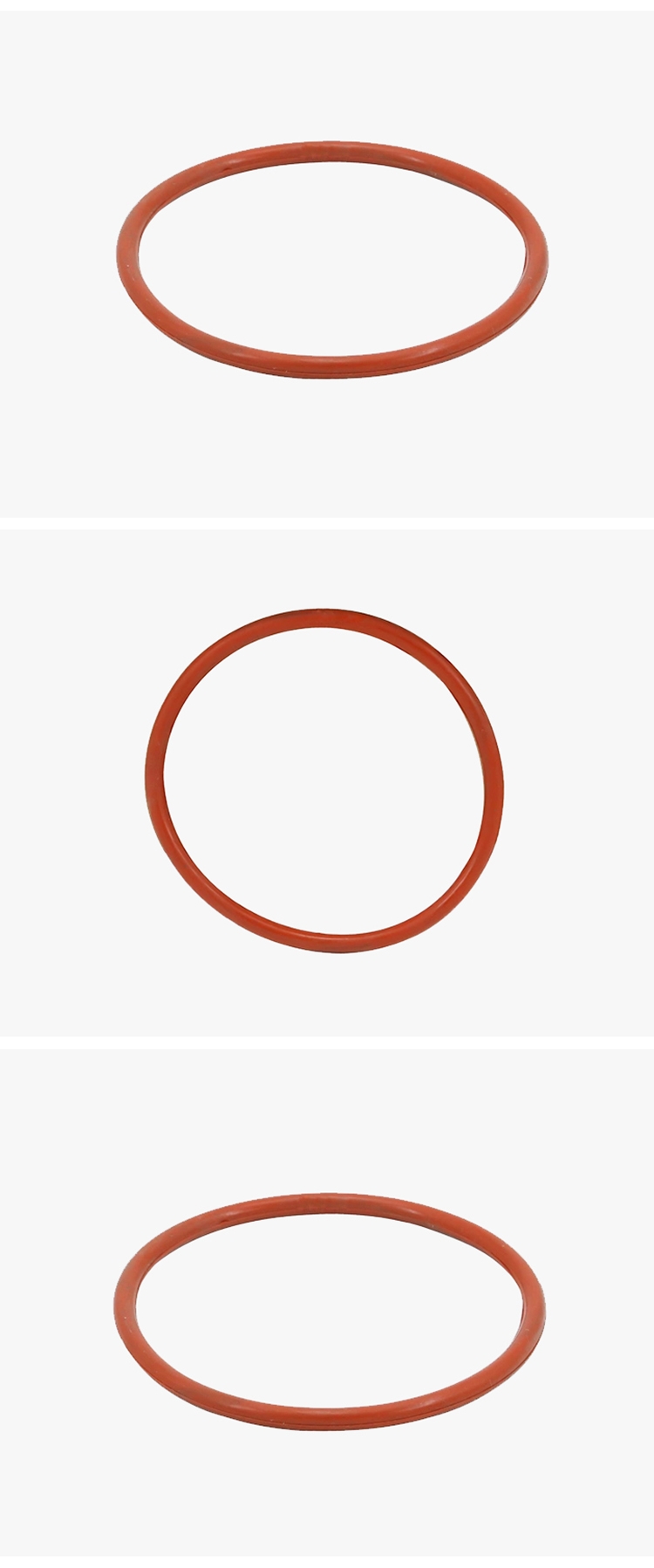

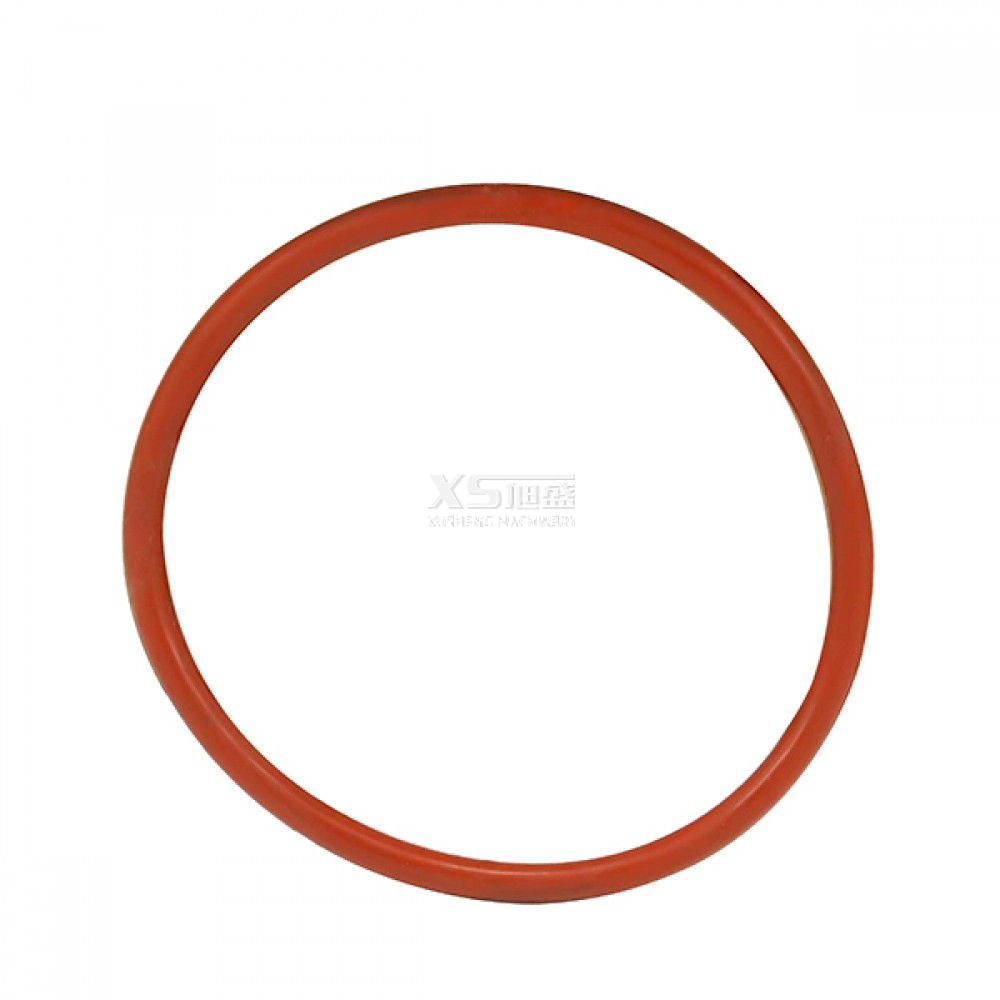

Product name:2.5" Sanitary Silicone Gasket with O Type for Diaphragm Valve
Stainless Steel Silicone Gasket with O Type for Diaphragm Valve
Hygienic Silicone Gasket with O Type for Diaphragm Valve
Technical Parameter
| · Material | Viton |
| · Screen mesh: | 10, 20, 40, 60, 80, 100, 120, 150, 200, 300, 400 mesh and so on |
| · Size: | 1/2"-12" /DN15-DN300 |
| · Gasket: | SMS,DIN,3A,IDF,ISO,RJT |
| · MOQ: |
50pcs each size |
The Funtions for Sanitary Silicone Gasket
| 1. | Has excellent heat resistance,cold resistance,ozone resistance,aging resistance |
| 2. | Has very good insulation performance |
| 3. | The tensile strength is poor and it is not resistant to oil. |
| 4. | -55Celsius Degree~250 Celsius Degree |
The Function for Sanitary EPDM Gasket
| 1. | Has good weather resistance, ozone resistance,water resistance and chemical resistance |
| 2. | Used for high temperature water vapor seal |
| 3. | -55Celsius Degree~150Celsius Degree |
The Function for Sanitary VITON Gasket
| 1. | High temperature resistance than silicone rubber, has excellent weather resistance, ozone resistance and chemical resistance |
| 2. | For most oil and solvent resistance |
| 3. | -20Celsius Degree~250Celsius Degree |
The Function for Sanitary NBR Gasket
| 1. | Suitable for oil system hydraulic oil, glycol system of hydraulic oil, two ester series lubricating oil, gasoline, water, silicone grease, silicone oil and other media use |
| 2. | The most widely used, the lowest cost of rubber seals |
| 3. | -40Celsius Degree~120Celsius Degree |
Sealing ring also pays attention to the following conditions
| 1. | Flexibility and elasticity |
| 2. | Appropriate mechanical strength, including tensile strength, elongation and tensile strength etc. |
| 3. | Stable performance, easy to swelling in the medium, heat shrinkage (Joule effect) small |
| 4. | Easy processing, and can keep the precision dimension |
| 5. | No corrosion no pollution to medium contact surface, etc. |
Advantage of Sanitary Gasket
| 1. | The sealing ring in the work pressure and temperature range, good sealing performance, and with the increase of pressure can improve the sealing performance |
| 2. | The friction between the sealing ring and the moving parts of the device must be small, stable friction coefficient |
| 3. | The corrosion resistance of the sealing ring is strong, not easy to aging, long service life, good resistance to abrasion, wear can automatically compensate to some extent |
| 4. | Has the advantages of simple structure, convenient use and maintenance, the sealing ring has a longer life |
Applications
It is used for food,beverage,pharmacy,chemical,dairy,cosmetics etc industries.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
