Stainless Steel SS304 Sanitary Weld Welding Straight Ball Valves

Model NO.:D001006001003D

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:5000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Material:Stainless Steel

Connection Form:Welding

Driving Mode:Manual

Nominal Pressure:0~10bar ,0~0.1MPa

Channel:Straight Through Type

Structure:Flexible Ball Valve

HS Code:8481804090

Trademark:XUSHENG

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D001006001003D

    TypeFlexible Ball Valve

    FunctionBypass-Valve

    TemperatureNormal Temperature

    ApplicationMilk,Juice

    Material QualitySS304,SS316L

    Available StandardISO, DIN, 3A,SMS etc

    SizeDn25-100 & 1"-4"

    ConnectionWelded, Clamped, Threaded, Flanged

    Working PrincipalManual Operation or Driving Device Operation

    Body Construction3-Piece Precision Cast Body

    Flow PatternStraight

    Seat MaterialPTFE, PCTFE, Peek or Upon Your Request

    Working Pressure8bar,0.08MPa

    Temperature Range-20degree Celsius~135degree Celsius

    HS Code8481804090

    TrademarkXUSHENG

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

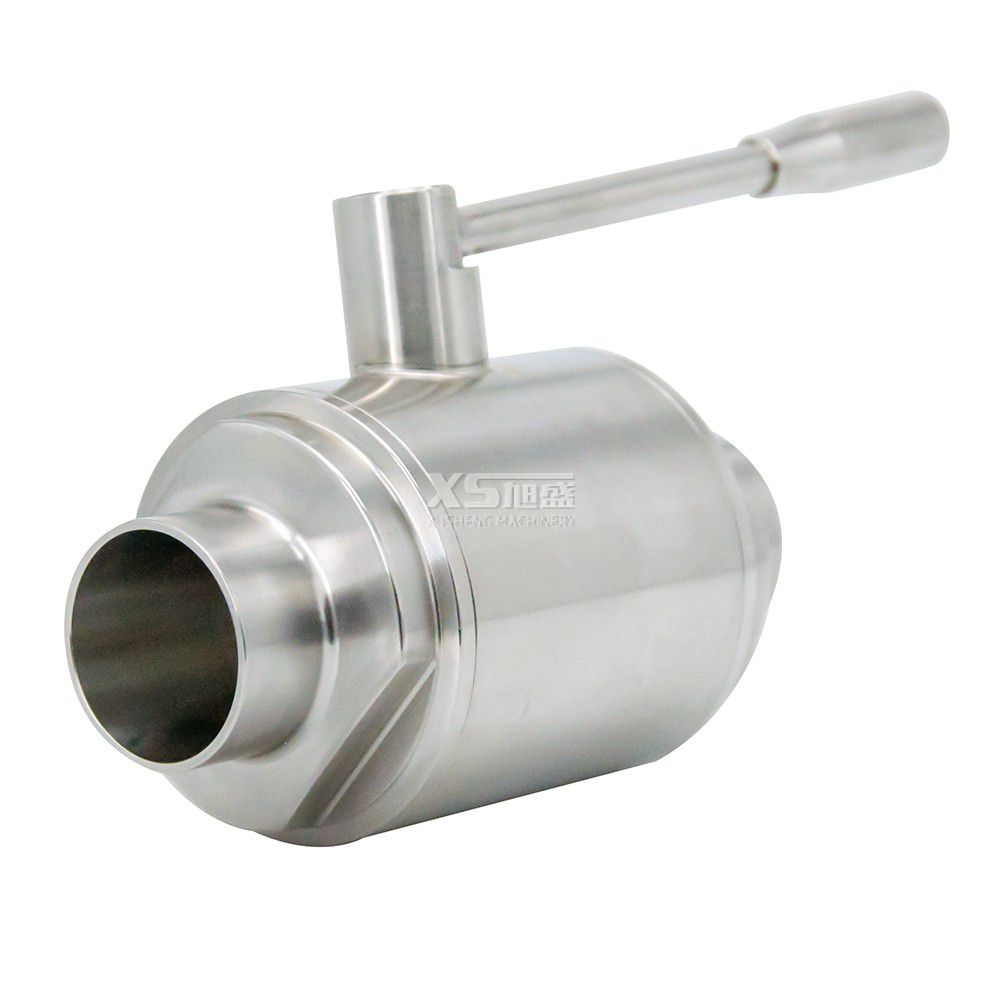

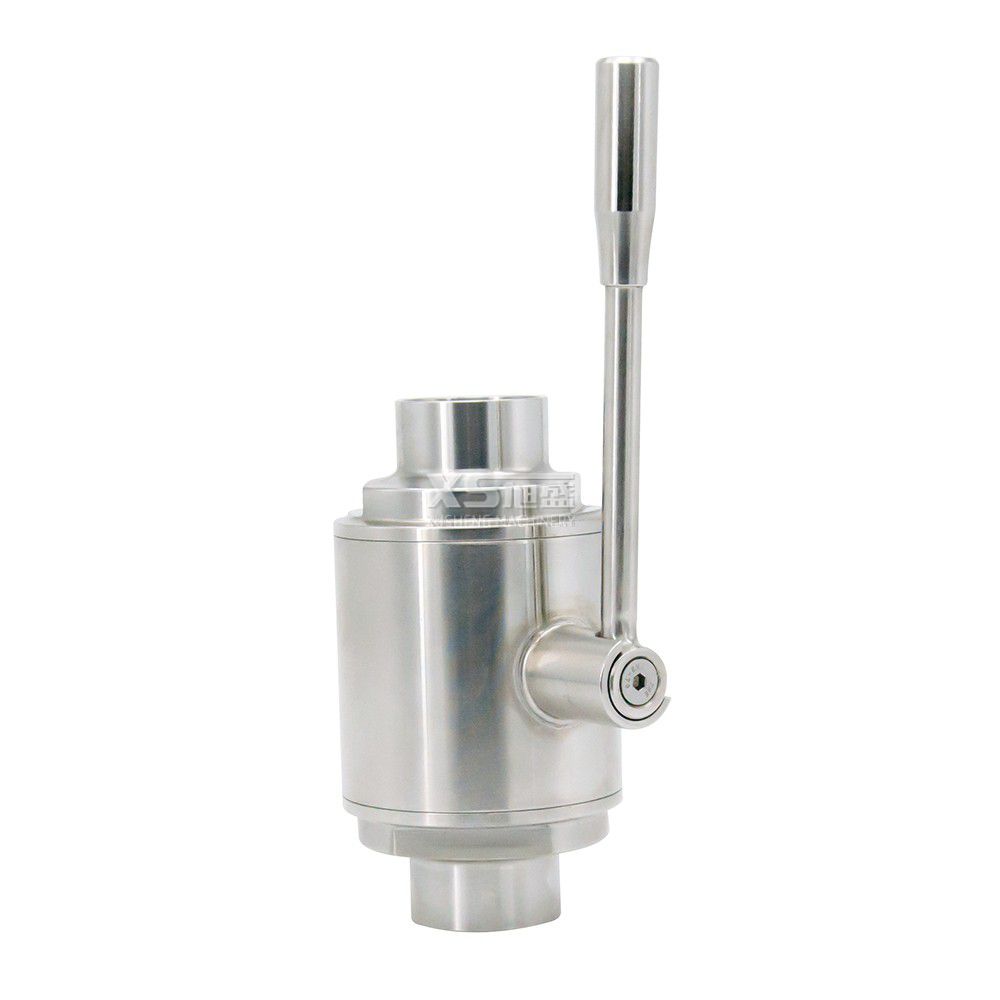

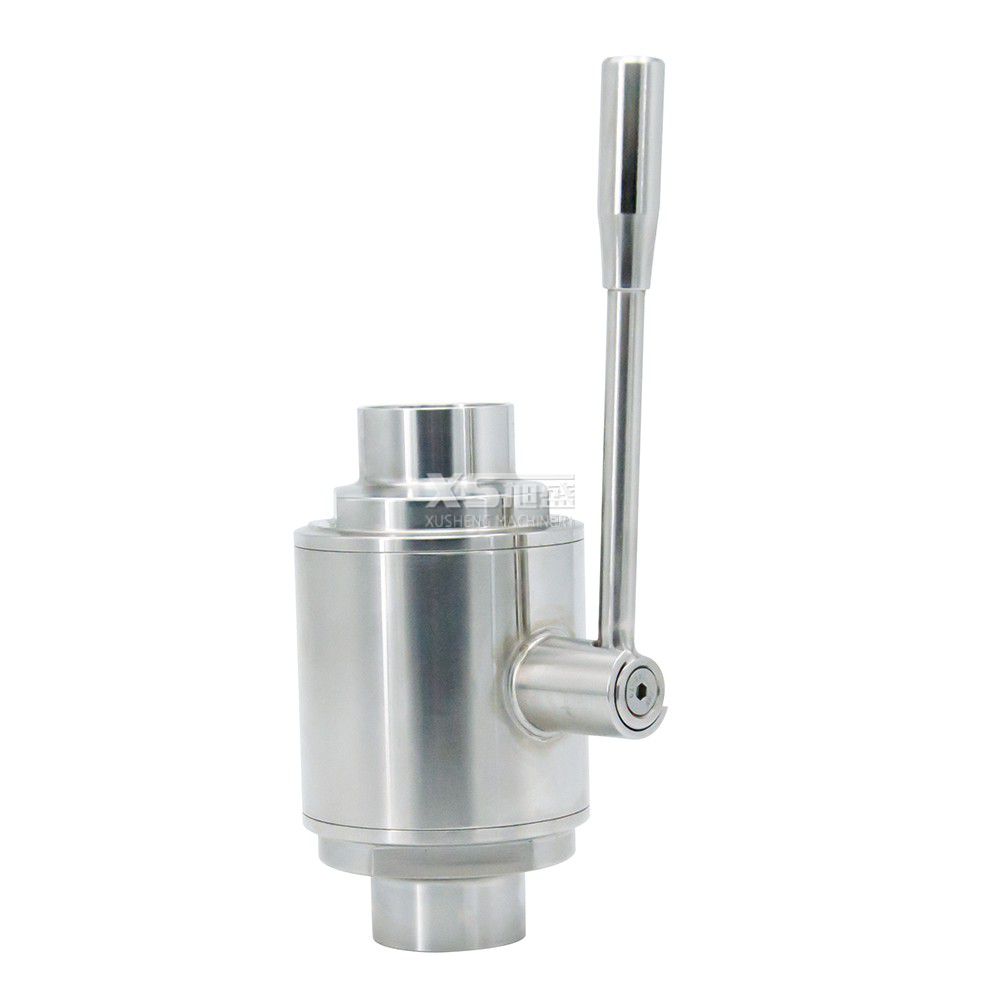

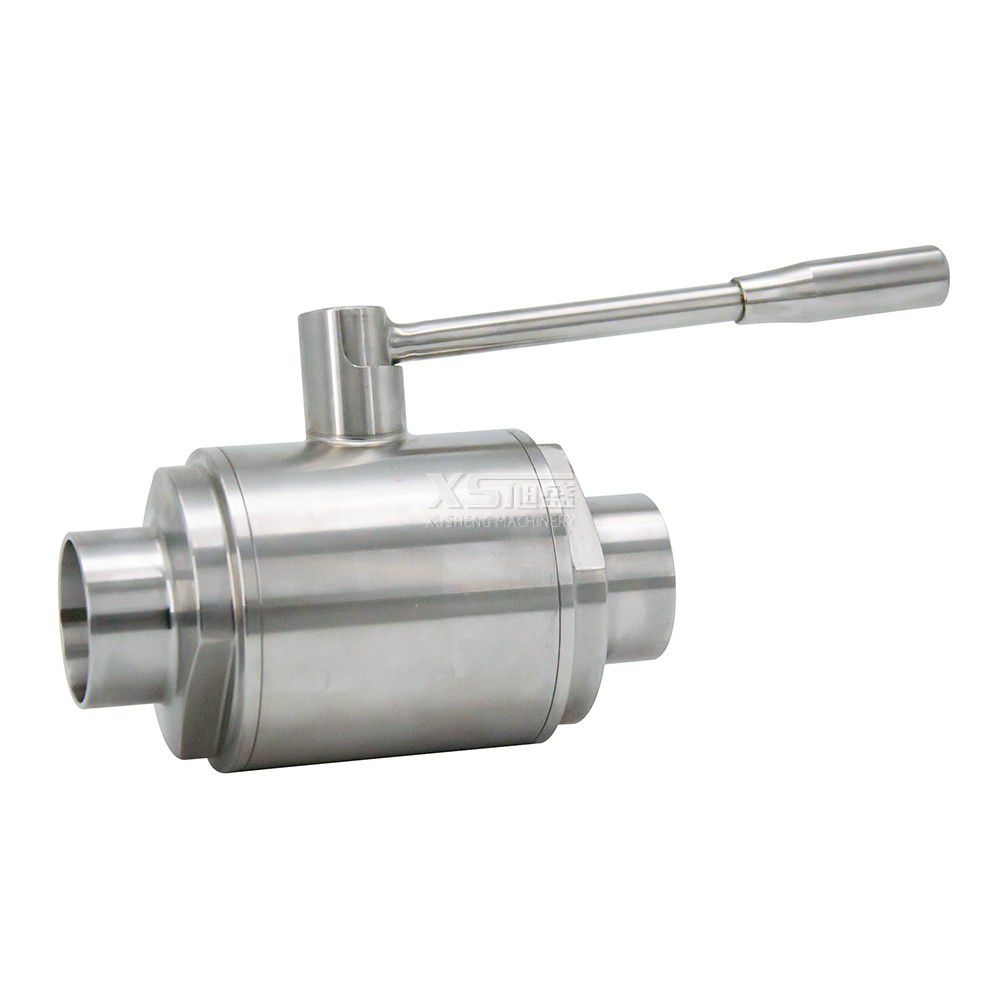

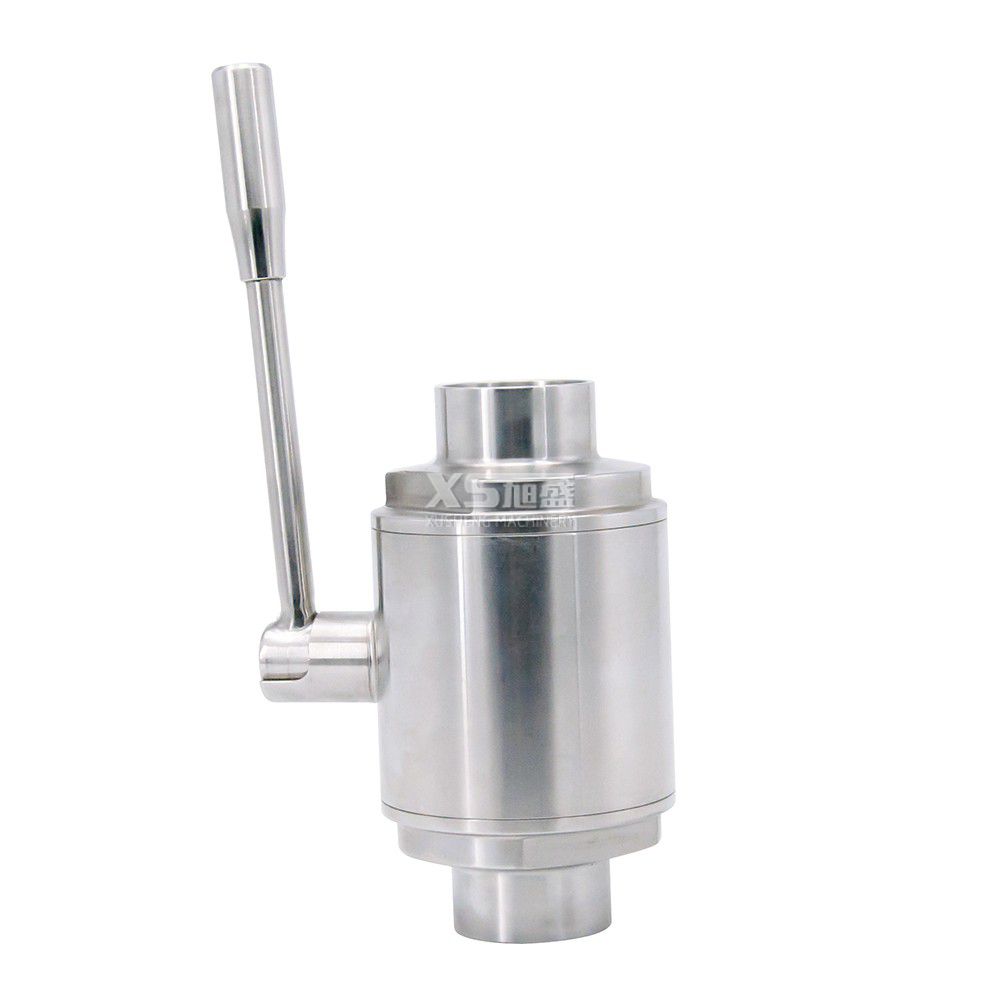

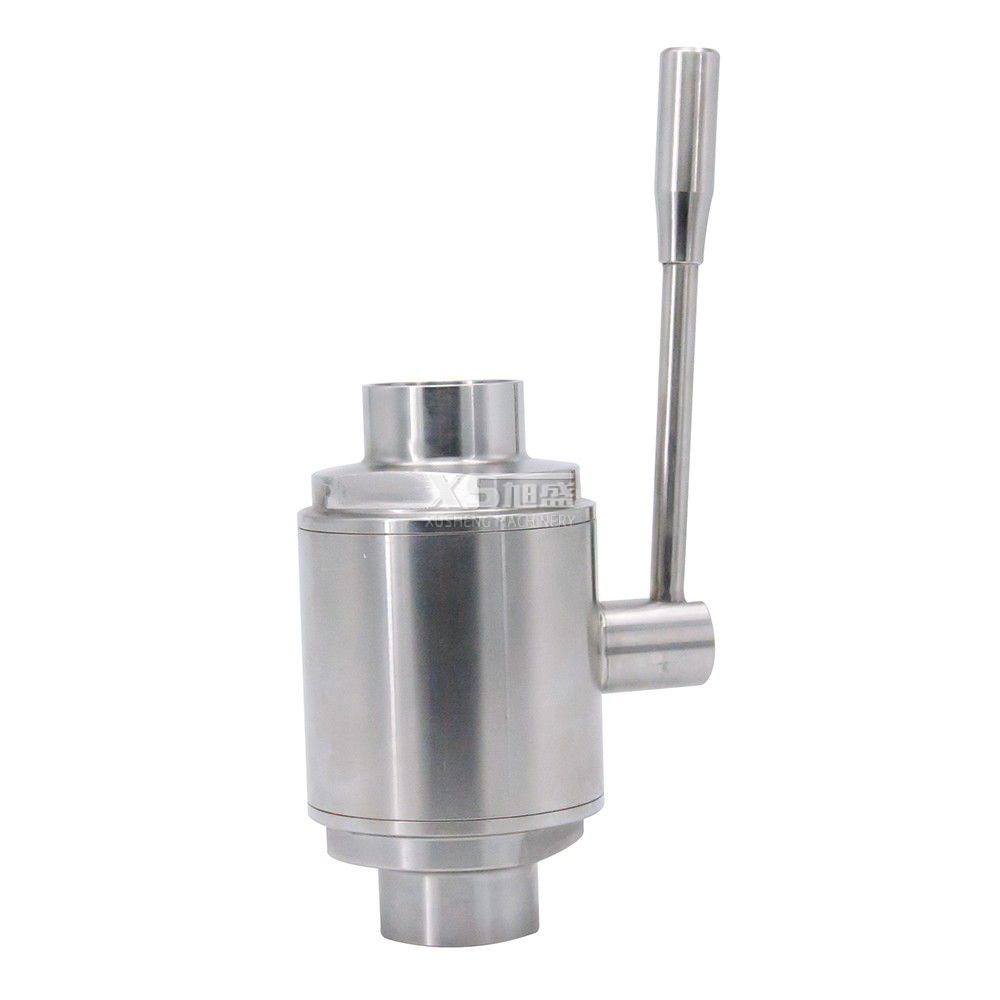

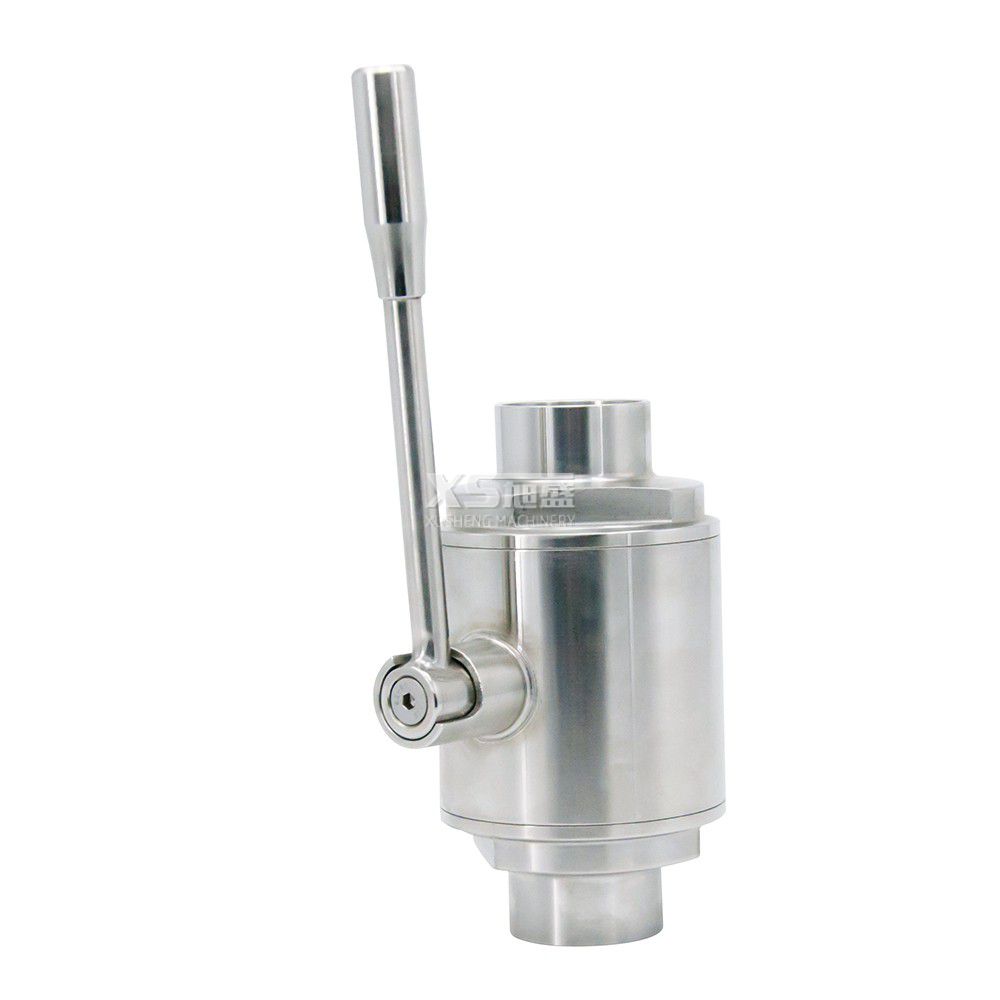

    Products Name:Stainless Steel SS304 Sanitary Weld Welding straight Ball Valves

    Stainless Steel Ball Valves
    SS304Weld Welding Ball Valves



    Technical Parameter

    Standard SMS,DIN,3A,IDF,ISO
    SMS,DIN,3A,IDF,ISO SS304,SS304L,SS316,SS316L
    Size 3/4"~6",DN19~DN150
    Seal ring of stem EPDM. VITON OR SILICON is required
    Connection ends Butt-welded,clamped,male ends,union ends
    External surface  Bright gloss,dull gloss
    Bright gloss,dull gloss Manual
    Working temperature -20Celsius degree~+135Celsius degree
     Max. working pressure 10Bar



    Applications

    Sanitary three piece ball valve is widely applied to pipeline and equipment control.It is widely used in brewing industry.



    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products



    FAQ

    Q: May I have free samples before ordering?
    Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

    Q: What’s the MOQ?
    The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

    Q: Does your company have the export license?
    Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

    Q: What’s the payment term?
    For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
    For mass orders, we accept T/T and L/C.

    Q: How would you minimize damages during delivery?
    Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
    Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

    Q: How would you choose the shipment way?
    Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
