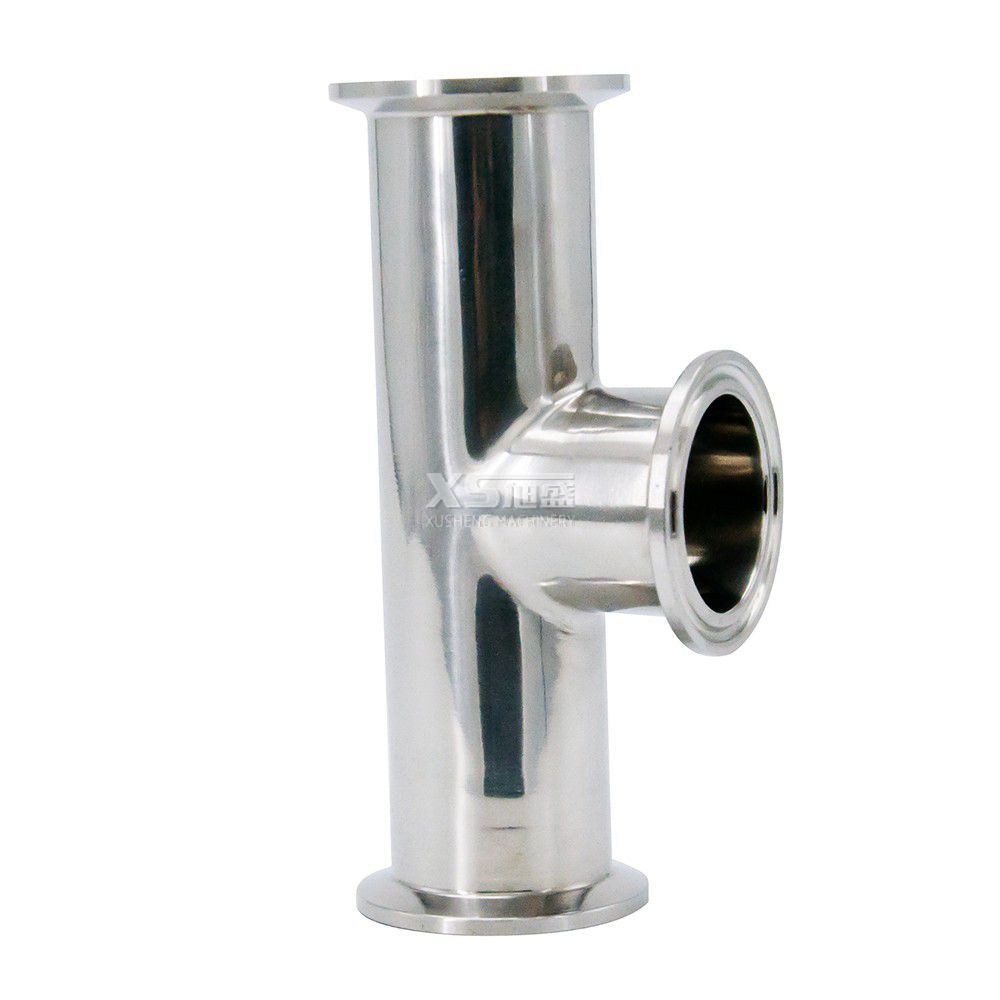

Sanitary Stainless Steel Clamp Straight End Short Equal Tee

Model NO.:D003002002D

Min. Order:10 Pieces

Port:Ningbo, China

Production Capacity:5000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Type:Reducing

Connection:Clamped

Material:Stainless Steel

Shape:Equal Tee

Lateral:90°Tee

Head Code:Round

HS Code:8481804090

Trademark:XUSHENG

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D003002002D

    Wall ThicknessSCH10

    FinishDull Polished and Mirror Polised

    TechnicsForged

    Pressure Rating0-10bar

    StandardDIN, 3A, SMS, Rjt

    CertificationISO, CE

    Material QualitySS304, SS304L ,SS316, SS316L

    Specifications1"-6",DIN 25-150

    Availabe StandardSMS,DIN,3A,Idf,Rjt, BS, ISO

    Temperature Range-20degree Celsius~135degree Celsius

    Type of ElbowEqual Tee,Reducing Tee,Short Tee,U Type Tee

    Available Polishing180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished

    Pressure Range1.5~3bar

    Available Thickness1.25mm,1.5mm,1.65mm,2mm,2.5mm,3mm

    Availabe ConnectionWelding Ends,Triclamp Ends,Union Ends,Male Ends

    ApplicationMilk,Juice,Beer,Beverage,Pharmacy,Ect

    HS Code8481804090

    TrademarkXUSHENG

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

    Products Name: Sanitary Stainless Steel Clamp Straight End Short Equal Tee

    Hygienic Clamp Straight End Short Equal Tee
    Pipe Fitting Hygienic Clamp Straight End Short Equal Tee



    Technical Parameter

    Availably standard SMS,DIN,3A,IDF,RJT, BS, ISO
    Material Quality SS304,SS304L,SS316,SS316L
    Availabe Connection Welding ends,triclamp ends,union ends,male ends
    Available Polishing 180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished
    Type of reducer Concentric,Eccentric
    Available Thickness 1.5MM,1.65MM,2MM,2.5MM,3MM
    Sorts of elbow With/Without straight ends
    Temperature Range -20degree Celsius~135degree Celsius
    Pressure range 0bar~10bar
    Inside and outside(mirror finish) RA ≤ 0.8um
    Inside(mirror finish) and outside(matt finish) RA ≤ 0.8um
    Inside and outside Electrolytic polishing RA ≤ 0.8um
    DIN Specifcation DN20>DN15
    DN25>DN20
    DN32>DN20
    DN32>DN25
    DN40>DN20
    DN40>DN32
    DN50>DN25
    DN50>DN32
    DN50>DN40
    DN65>DN25
    DN65>DN32
    DN65>DN40
    DN65>DN50
    DN80>DN40
    DN80>DN50
    DN80>DN65
    DN100>DN50
    DN100>DN65
    DN100>DN80
    SMS Specificaion 1 1/2">1"
    2">1"
    2">1 1/2"
    2 1/2">2"
    3">2"
    3">2 1/2"
    4">2"
    4">2 1/2"
    4">3"



    Applications

    The products are treated with high-grade polishing equipment inside and outside to meet the requirements of surface precision; this product is suitable for stainless steel pipe system in dairy, food, beer, beverage, pharmaceutical, cosmetics and other industries



    Product application

    Comyany information

    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products



    FAQ

    Q: May I have free samples before ordering?
    Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

    Q: What’s the MOQ?
    The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

    Q: Does your company have the export license?
    Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

    Q: What’s the payment term?
    For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
    For mass orders, we accept T/T and L/C.

    Q: How would you minimize damages during delivery?
    Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
    Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

    Q: How would you choose the shipment way?
    Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
