| Model NO. | D001002002001D | FOB Price |
US $5.8-43.48 |
| Min. Order | 1 Piece |
| Port | Ningbo, China |
| Production Capacity | 100sets/Month |
| Size | 1/2"~4",Dn10~Dn100 |
| Flow Medium Parts | 304,304L,316L (1.4301,1.4307,1.4404) |
| Connection Ends | Butt-Welded,Tri Clamp,Male and Female Threa |
| Actuator | Pneumatic Ss Actuatorelectric Actuator,Manual |
| Continuous Working Temperature | -20 ~ 135degree Celsius(EPDM) |
| Working Pressure | 0~10bar (Standard) |
| TAG | Sanitary Pneumatic Shut off Valves、 Hygienic Pneumatic Diverter Valves、 Mini Sanitary Pneumatic Diverter Valves、 Sanitary Tri-clamp Pneumatic Diverter Valves、 Sanitary Pneumatic Flow Division Valves、 Sanitary Pneumatic Diverter Valves、 |
Model NO. : D001002002001D
Position Sensor : 24V DC,NPN/PNP Position Sensor (2)
Flow Type : L,L/L,T/L,T,L/T,T/T
Connection Standard : DIN, 3A, SMS, Rjt, Idf
HS Code : 8481804090
Trademark : XUSHENG
Specification : ISO, 3A, SGS
Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case
Origin : Wenzhou City, China

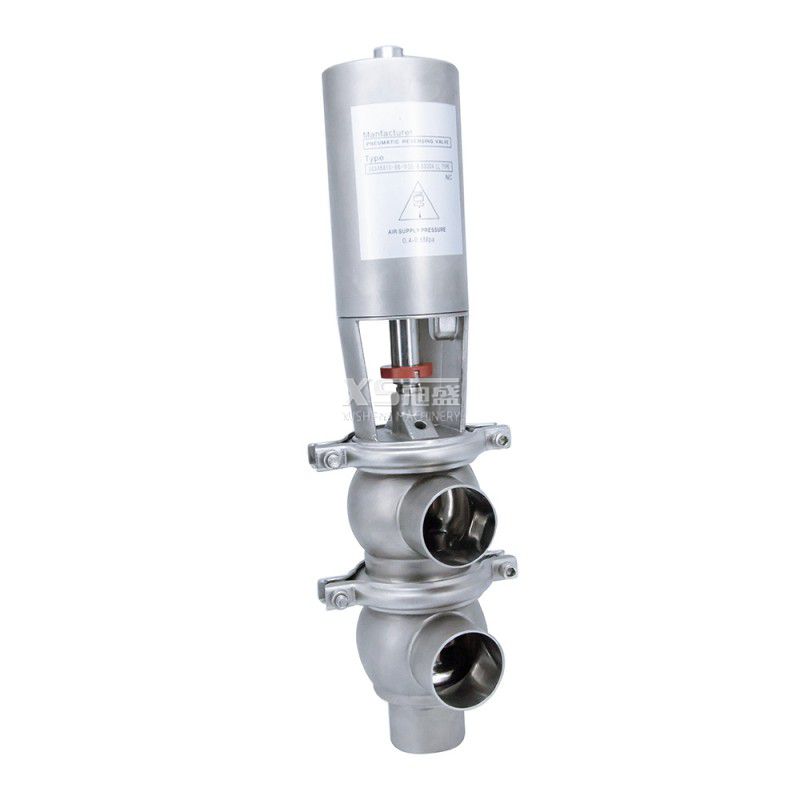

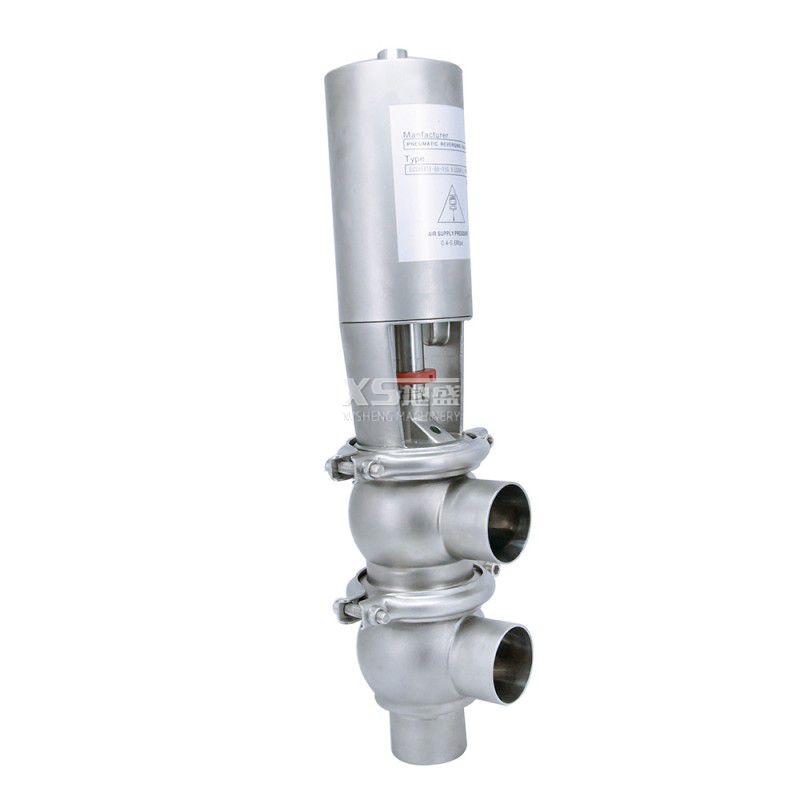

Products Name:SS304 SS316L Stainless Steel Sanitary Welding Pneumatic Diversion Valve
Sanitary Welding Pneumatic Diversion Valve
SS304 SS316L Welding Pneumatic Diversion Valve
Technical Parameter
| Size available | 1/2"~4",DN10~DN100 |
| Max. working pressure | 147psi (10bar) |
| Control air pressure | 70 ~ 116psi (5 ~ 8bar) |
| Working temperature range | EPDM:-20 ~ 135°C |
| Sterilization temperature | 150°C, Max. 20 min |
| Pneumatic connection | R1/8" (BSP) |
| Finish Surface | <32Ra (<0.8um); Other finishes available upon request. |
| End connections | butt welded,tri clamp,male and female |
| Standard | DIN, 3A, SMS, RJT, IDF or others upon request |
| Flow Medium Parts | 304,304L,316L (1.4301,1.4307,1.4404) |
Applications
Sanitary reversing valve has very flexible design which meets sanitary requirements, and is mainly used in pipeline systems without contaminant or mixture. As a modern and widely used valve, it is mainly used in the wine brewing, dairy, beverage, and pharmaceutical industries.
Operating Principle
Sanitary reversing valve is remotely operated by means of compressed air or manual. By controlling the relative
position of valve plug, it makes the valve open or closed (shut-off type), or changes the flow direction of media.
Sanitary reversing valve can
be installed with smart controller.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
