Model NO. : D001004001002D

Function : Solenoid Valve, Electronic Type, Intelligent Type, Field Bus, Manual Type

Usage : Flow Control

Standard : DIN, GB, ANSI, BSW, JIS

Valve Body Material : Ss316L

Availably Standard : 3A/Bpe/DIN/ISO/Idf/SMS

Seal Material : PTFE + EPDM (Double Layer) / EPDM / Silicon / FPM

Availably Size : 1"-3", Dn20-Dn65

Availably Connection : Clamp/Weld/Thread/Special Connection

Operated : Manual, Pneumatic for Pulse Jet Diaphragm Valve

Availably Structure : Straight, Tee, U-Type, Tank Bottom

Max. Working Pressure : 10bar

Max. Working Temperature : 120 Degree C

Application Scope : Dairy, Food, Beverage, Pharmacy, Cosmetic, etc

HS Code : 8481804090

Trademark : XUSHENG

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

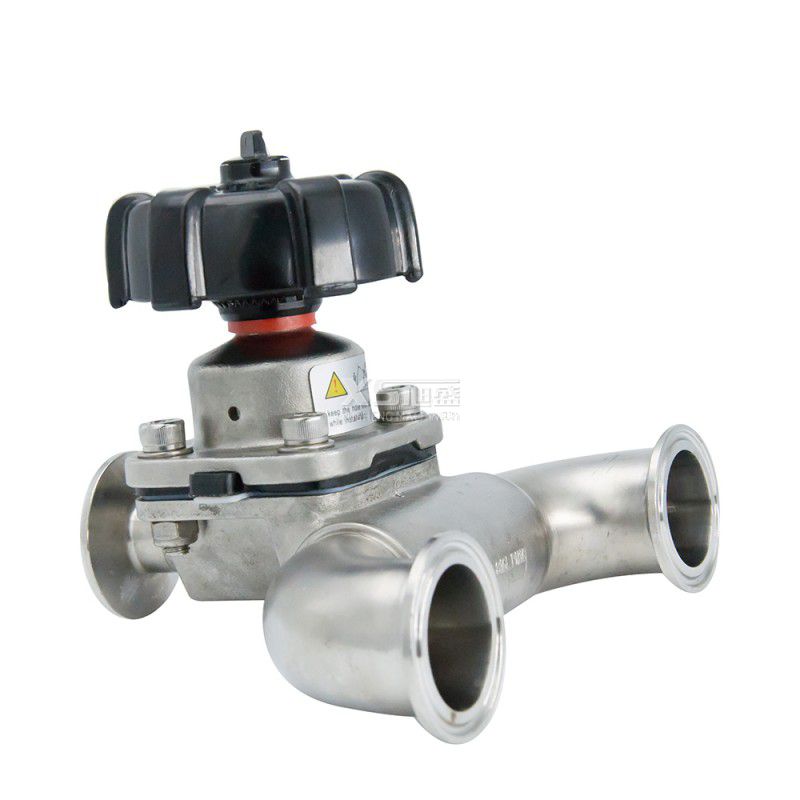

Products Name: Stainless Steel 316L Sanitary Manual U-Type Diaphragm Valve

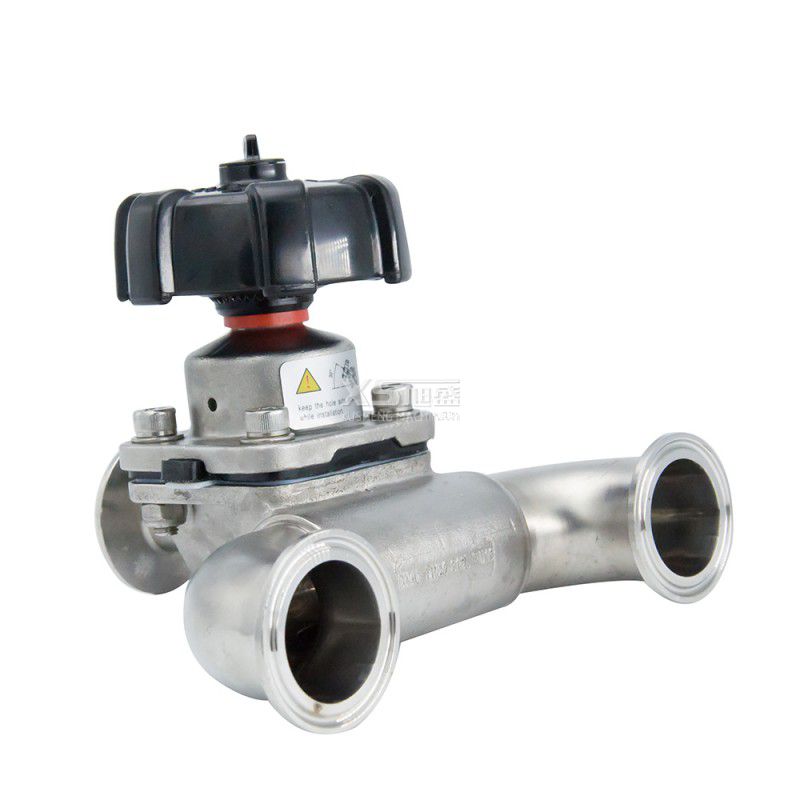

Stainless Steel 316L Sanitary Manual U-Type Diaphragm Valve

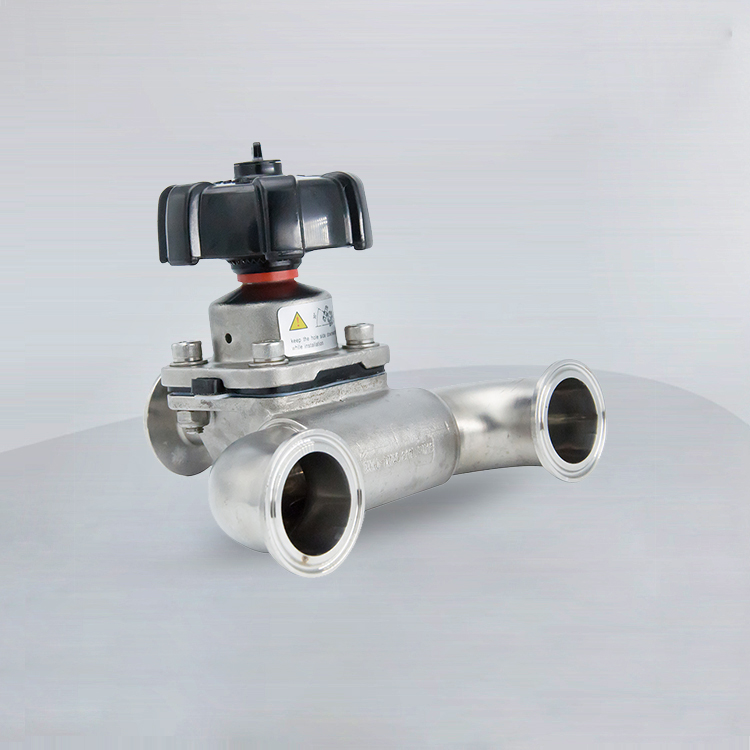

Stainless Steel 316L Sanitary Manual U-Type Diaphragm Valve

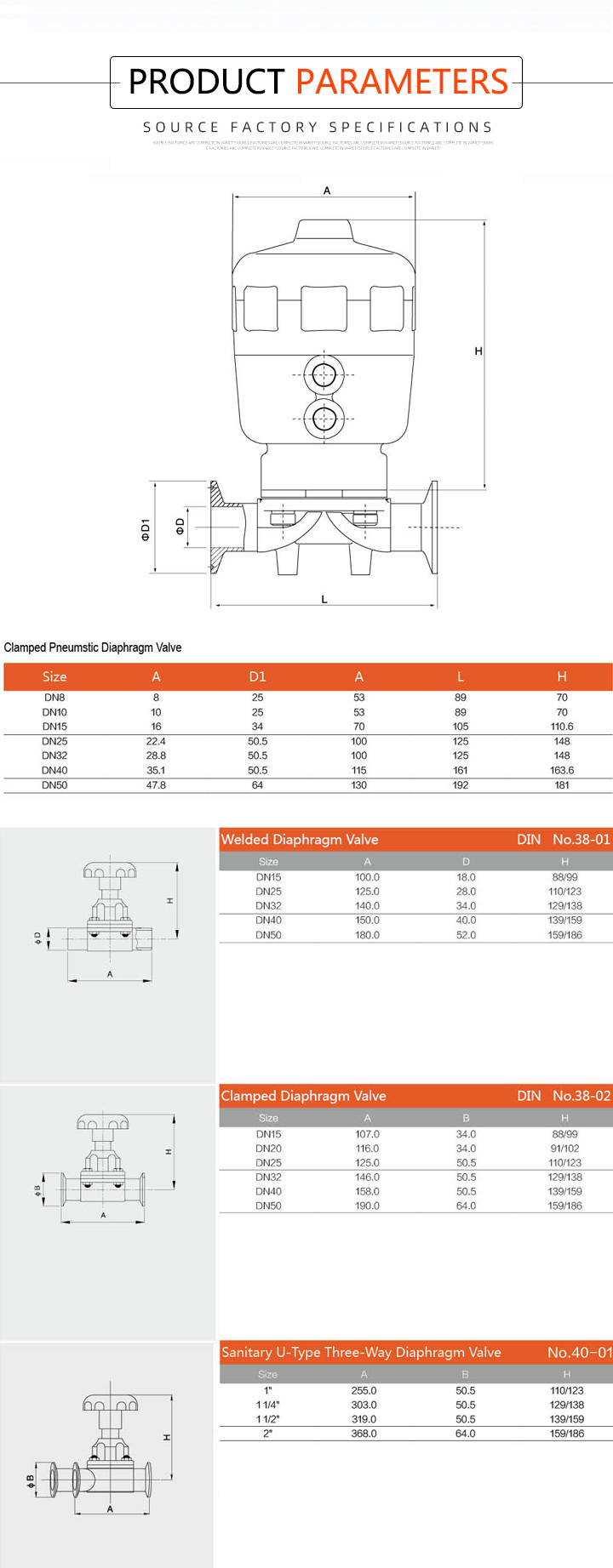

Technical Parameter

Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.

Diaphragm seals the valve body and seat.The is no way to contact the environment.So this valve is suitable for asepsis process.When the valve is off.The pressure seal that holding up diaphragm moves towards to the sealing face of valve body.When the pressure plate moves,the diaphragm bending.forced towards to seat area of body center.So that to shut off the flow path to valve body.The relevant of valve body and pressure plate prevents the diaphragm pressing.The valve can be manual and air actuated,also can be operated by control top and soleniod valve.
