| Model NO. | D006002003D |
| Min. Order | 1 Piece |
| Port | Ningbo, China |
| Production Capacity | 5000sets/Month |
| Payment Terms | L/C, T/T, D/P, Western Union, Paypal, Money Gram |
| Material Quality | SS304, SS304L ,SS316, SS316L |
| Availabe Standard | SMS,DIN,AAA,Idf,ISO,Rj |
| Temperature Range | -20degree Celsius~135degree Celsius |
| Seal Material | Silicone, EPDM, Viton, NBR |
| Glass material | Heavy Wall Borosilicate Tubing Polycarbonate Tub |
| Pressure Range | 1.5~3bar |
| TAG | Stainless Steel LED Flashlight Style Union Lamp Sight Glass、 |
Model NO. : D006002003D
Structure : Straight Way,Cross
Availabe Connection : Welding Ends,Triclamp Ends,Union Ends,Male Ends
Application : Milk,Juice,Beer,Beverage,Pharmacy,Ect
HS Code : 8481804090
Trademark : XUSHENG
Specification : ISO, 3A, SGS
Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case
Origin : Wenzhou City, China

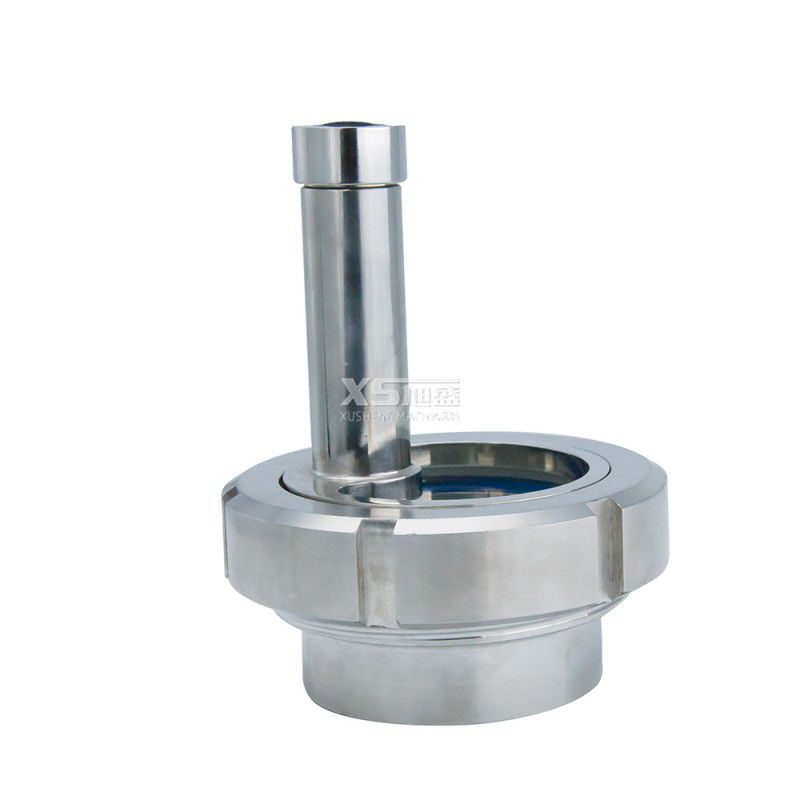

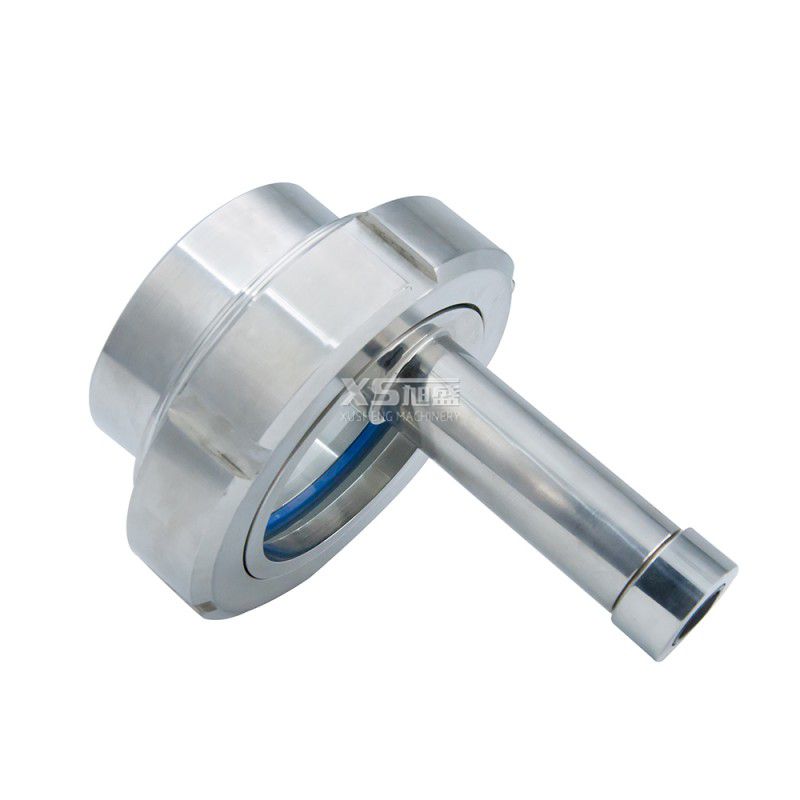

Product name:Stainless Steel LED Union Type Tank Lamp Sight Glass
LED Union Type Tank Lamp Sight Glass
Union Type Tank Lamp Sight Glass
It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.Sanitary Straight Sight Glass allows observation of fluids in transit through a three-dimensional pipeline
Technical Parameter
| Availably standard | SMS,DIN,3A,IDF,RJT, BS, ISO |
| Material Quality | SS304,SS304L,SS316,SS316L |
| Specification | DN150 |
| Availabe Connection | Welding ends,triclamp ends,union ends,male ends |
| Seal Material | Silicone, EPDM, Viton, NBR |
| Glass | Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan) Tubing; Acrylic Tubing; etc |
| Protection Lens Cover | Polycarbonate Tubing,Acrylic Tubing or Slotted Stainless Steel |
| Screw Blot | Full Stainless Steel |
| Structure | Straight way,cross |
| Pressure range | 0bar~10bar |
| Machine Processing | The most advanced CNC machine from Japan for processing |
| Continuous working temperature | 20°C ~ +135°C (EPDM,Silicone) |
| Special Design | we can produce according to your drawings |
Advantage of products
| 1. | Each kind of products has strong corrosion resistance and over-long service liftime |
| 2. | Xusheng accessories are easy to be installed |
| 3. | Problem-free welding and assembly and highest possible strenghth |
Applications
Sanitary Straight Sight Glass is designed for sanitary applications required in the food, dairy, and pharmaceutical industries.
| Available Size | DN65,DN80,DN100,DN125,DN150 |
| Available Material | Ss304, Ss304L ,Ss316, Ss316L |
| Available Standard | SMS,DIN |
Performance of Tank Lamp Sight Glass
| Operating voltage | 12V / 24V / 36V / 220V |
| Power | 20W / 50W / 100W |
Features of Tank Lamp Sight Glass
| Luminous flux | 220 lumens, lamp life: 50,000 hours, do not worry about frequently changing a light bulb, and the 5th battery 14500 lithium battery-powered GM, do not have to worry about power, luminous tail. |
| Lamp | 1W using a bright LED lamp, Taiwan chip, domestic assembly. |
| Power | Using a 5 batteries, power lasting more powerful, it is recommended to use high mAh rechargeable battery, more power, LED lights brighter, while the economic benefits. |
Parts Name of Tank Lamp Sight Glass
| NO | NAME |
| 1 | Body |
| 2 | High Pressure Glass |
| 3 | Male |
| 4 | Lock Nut |
| 5 | Seal |
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
