| Model NO. | D002002001D | FOB Price |
US $13.04-14.49 |
| Min. Order | 1 Piece |
| Port | Ningbo, China |
| Production Capacity | 5000-10000sets/Month |
| Payment Terms | L/C, T/T, D/P, Western Union, Paypal, Money Gram |
| Material | AISI304, AISI316L |
| Available Connection | >Triclamp, Union, Threaded, Flange |
| Available Rotor | Single Wing, Double Wing, Trilobe |
| Availabe Motor | ABB Motor and China Motor, Siemens |
| Power(Kw) | 0.55kw~22kw |
| Availabe Voltage | 220V, 380V, 440V, 480V, Ect |
| TAG | Lobe Rotary Pump for Ice Cream、 Sanitary Lobe Rotor Pump、 Lobe Rotor Pump、 Sanitary Stainless steel Lobe Pump、 Sanitary Stepless Lobe Pump、 Sanitary Variator Rotor Lobe Pump、 Sanitary Stepless Variator Rotor Lobe Pump、 Sanitary Stainless Steel Variator Roto、 |
Model NO. : D002002001D
Availabe Pump : Gear Reducer, 220V, Stepless Speed Regulation
Suggested Rotation Speed(Rmp) : 200~500rpm
Application : Chemical, Pharmacy, Food, Chocolate, Yogurt
Flow Per 100 Rotatiom : 3L~200L
HS Code : 8413709990
Trademark : XUSHENG
Specification : ISO, 3A, SGS
Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case
Origin : Wenzhou City, China
Products Name:Stainless Steel Food Grade Sanitary Rotary Lobe Pump
Milk Centrifugal Pump With Closed Impelle
Stainlss Steel Sanitary Milk Centrifugal Pump impelle
Food Industry: Yogurt,Fresh Butter,Ice Cream,Cheese,Whey,Beer,Wort,Yeast,Soft Drink,Fruit Jelly, Fruit Drink,Ketchup,Fruit Puree,Vegetable Mash,Pudding,Fruit Jam,Jelly, Flavor,Fruit Stuffing,Sweet, Yeast,Seasoning,Bread,Meat Gruel,Comminuted Meat,Meat Oil,Edible Oil,Candy,Syrup,Thin Cream Dressing,Chocolate,Etc.
Daily Chemicals: Cleansing Facial Milk,Hair Gel,Hair Dyes,Essence Oil,Toothpaste,Detergent, Shampoo,Shoe Polish,Cosmetics,Perf-umery Compound,Soap,Balsam,Etc. Pharmacy:Various Pill,Paste,Emulsifier,Syrup,Nutrition Liquid,Chinese Traditional Patent Medicine, Medicine Grease,Biological Products,Fish Meal,Pollen,Royal Jelly,Vaccine.
Chemical Industry: Fat,Dissolvent,Resin,Polymer,Paint,Pigment,Dyes,Coating Material,Lubricant, Lubricating Grease,Oil Agent,Emulsified Asphalt,Adhesive,Plastic,Explosives,Glass Fiber Reinforced Plastics,Leather,Etc.
Construction Industry: Various Coating,Including Indoor/outdorr Wall Coating,Corrosi on And Water Proof Coating,Ceramic Coating,Paint Coating,Ceramic Glazing,Etc.
Other Industries: Plastic Industry,Textile Industry,Papermaking Industry,Coal Floatation Agent, Nanometer Material,Biochemical Industry

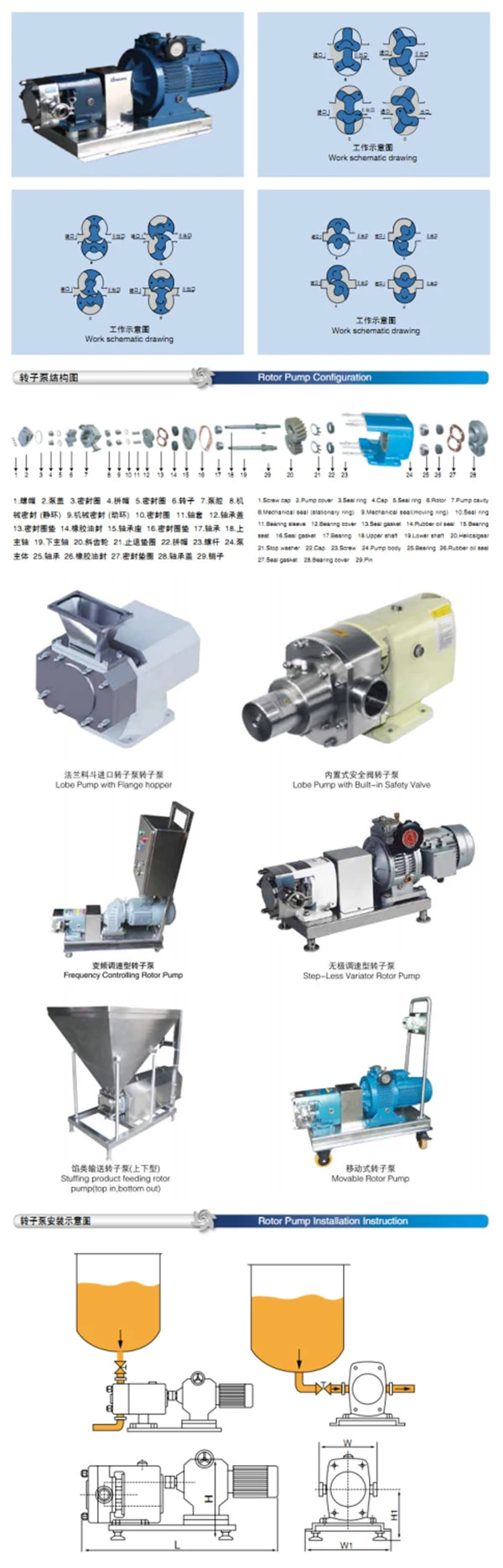

Operation Principle: Rotor pump is also named rotary lobe epump,three-lobe pump,sole pump,etc.When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve,it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.
Technical Parameter
| Model | Flow per 100 Rotation(L) | Suggestion Rotation Speed(RMP) | Capacity(L/H) | Power(KW) |
| ZB3A-3 | 3 | 200-500 | 300-800 | 0.55 |
| ZB3A-6 | 6 | 200-500 | 650-1600 | 0.75 |
| ZB3A-8 | 8 | 200-500 | 850-2160 | 1.5 |
| ZB3A-12 | 12 | 200-500 | 1300-3200 | 2.2 |
| ZB3A-20 | 20 | 200-500 | 2100-5400 | 3.0 |
| ZB3A-30 | 30 | 200-400 | 3200-6400 | 4 |
| ZB3A-36 | 36 | 200-400 | 3800-7600 | 4 |
| ZB3A-52 | 52 | 200-400 | 5600-11000 | 5.5 |
| ZB3A-66 | 66 | 200-400 | 7100-14000 | 7.5 |
| ZB3A-78 | 78 | 200-400 | 9000-18000 | 7.5 |
| ZB3A-100 | 100 | 200-400 | 10000-22000 | 11 |
| ZB3A-135 | 135 | 200-400 | 15000-30000 | 15 |
| ZB3A-160 | 160 | 200-400 | 17000-34000 | 18.5 |
| ZB3A-200 | 200 | 200-400 | 21600-43000 | 22 |
Applications
Sanitary centrifugal pump is one type of centrifugal pump which mainly used for pharmaceutical,food industry, dairy industy.
Sanitary (hygienic )centrifugal pump is one type of centrifugal pump which mainly used for pharmaceutical, food industry,dairy industry, winery ,turnkey project .The pumps are made of Stainless steel 316L or SS 304 ,which with a surface polished , can be used to the above industry for sanitary purpose
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
