| Model NO. | D001002001001D |
| Min. Order | 1 Piece |
| Port | Ningbo, China |
| Production Capacity | 1000pieces/Month |
| Payment Terms | L/C, T/T, D/P, Western Union |
| Size | 1/2"~4",Dn10~Dn100 |
| Flow Medium Parts | 304,304L,316L (1.4301,1.4307,1.4404) |
| Connection Ends | Butt-Welded,Tri Clamp,Male and Female Threa |
| Actuator | Pneumatic Ss Actuatorelectric Actuator,Manual |
| Continuous Working Temperature | -20 ~ 135degree Celsius(EPDM) |
| Working Pressure | 0~10bar (Standard) |
| TAG | hygienic cut off valves、 sanitary cut off and diverter valves、 LL sanitary diverter valves、 sanitary manual diverter valves、 L manual diverter valves、 |
Model NO. : D001002001001D
Position Sensor : 24V DC,NPN/PNP Position Sensor (2)
Flow Type : L,L/L,T/L,T,L/T,T/T
Connection Standard : DIN, 3A, SMS, Rjt, Idf
HS Code : 8481804090
Trademark : XUSHENG
Specification : ISO, 3A, SGS
Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case
Origin : Wenzhou City, China

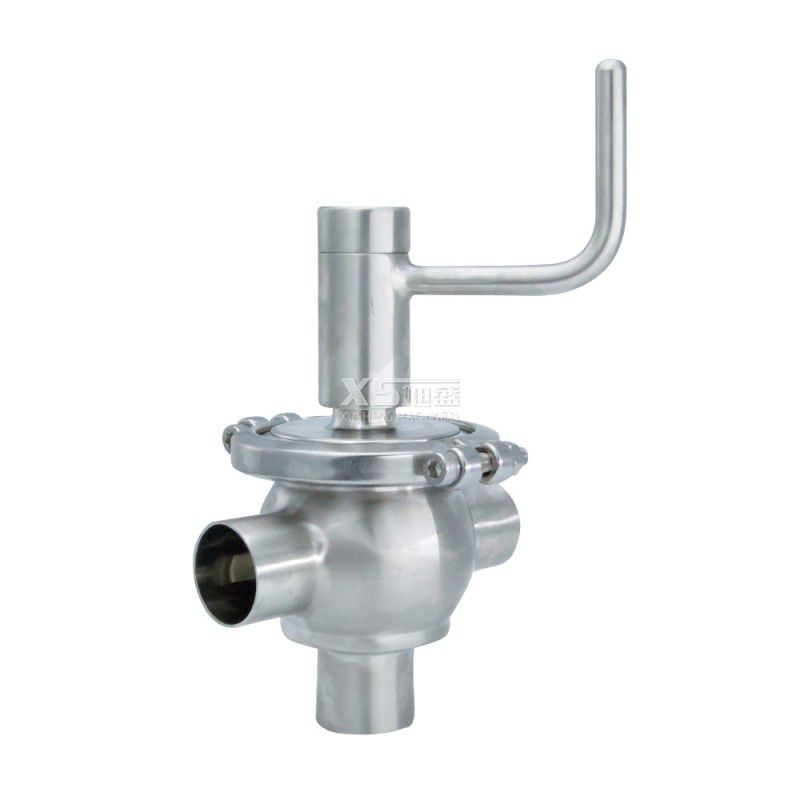

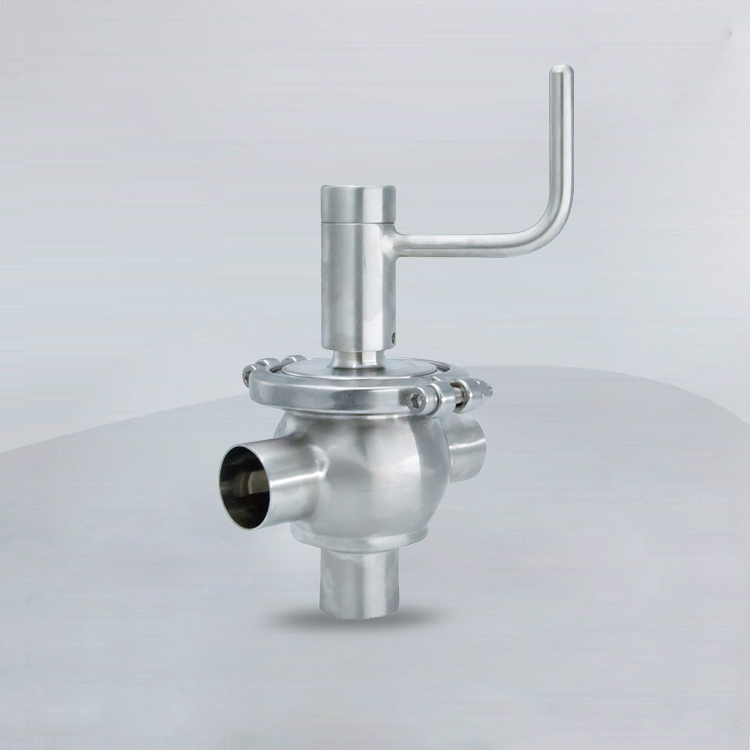

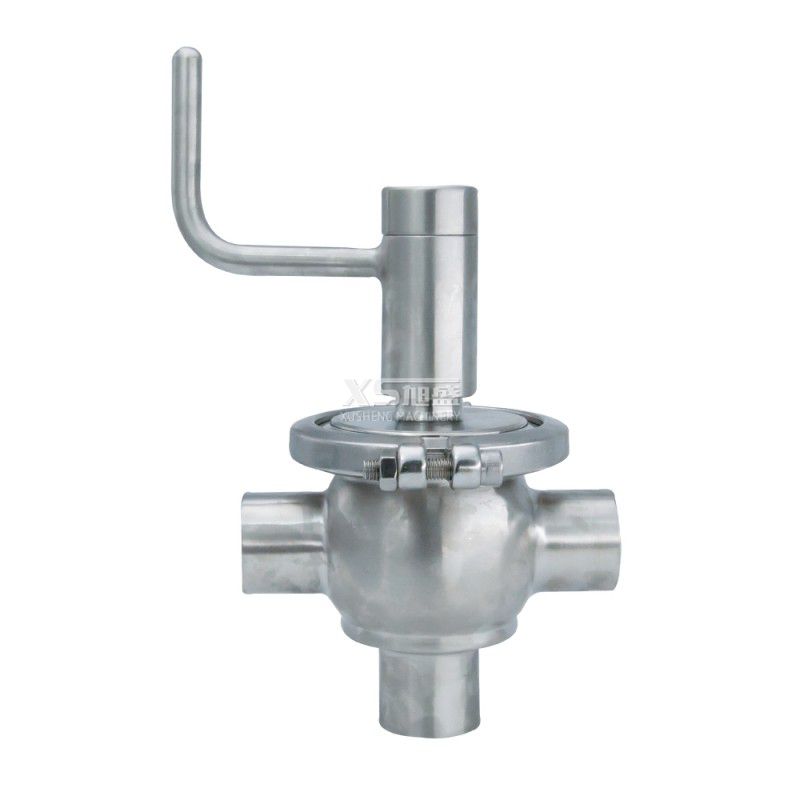

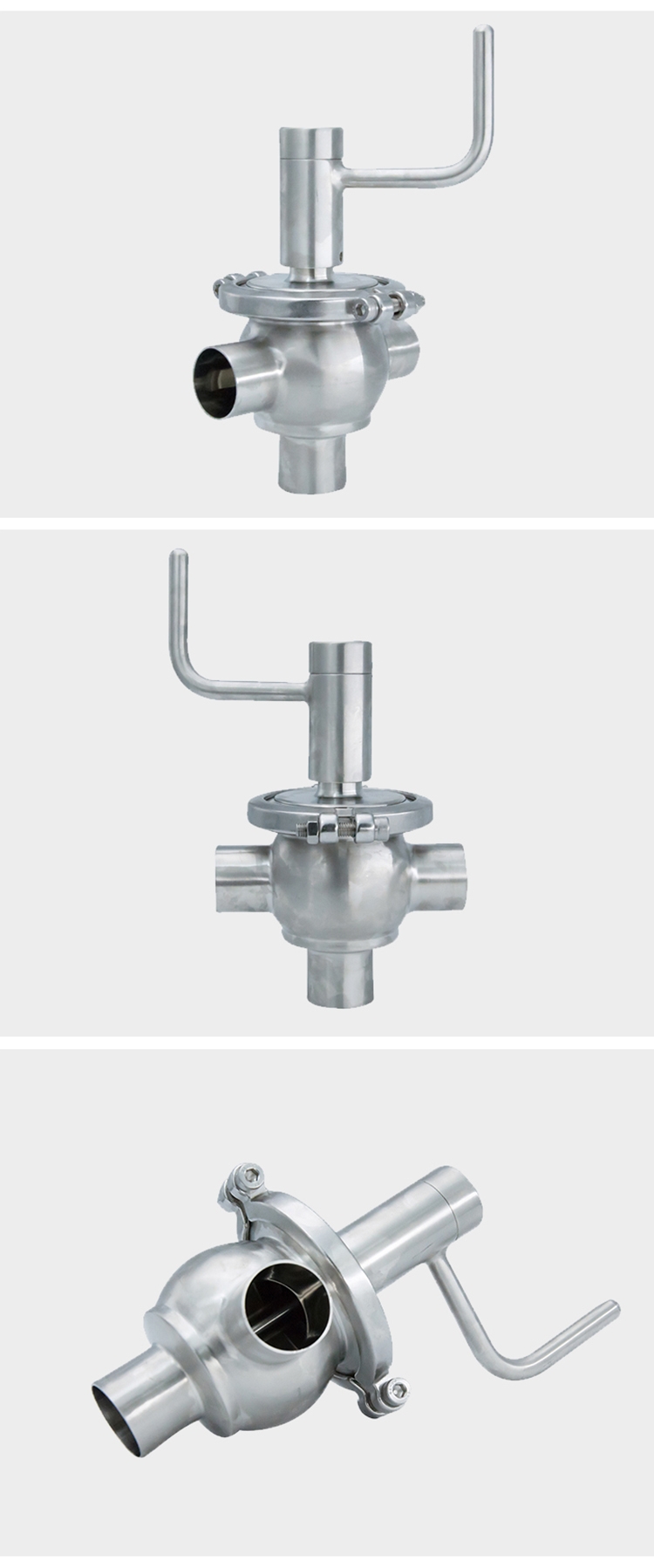

Products Name:Stainless Steel 304 316L Manual Divert Seat Valve
Manual Flow Control Divert Valve
Stainless Steel Manual Flow Control Divert Valve

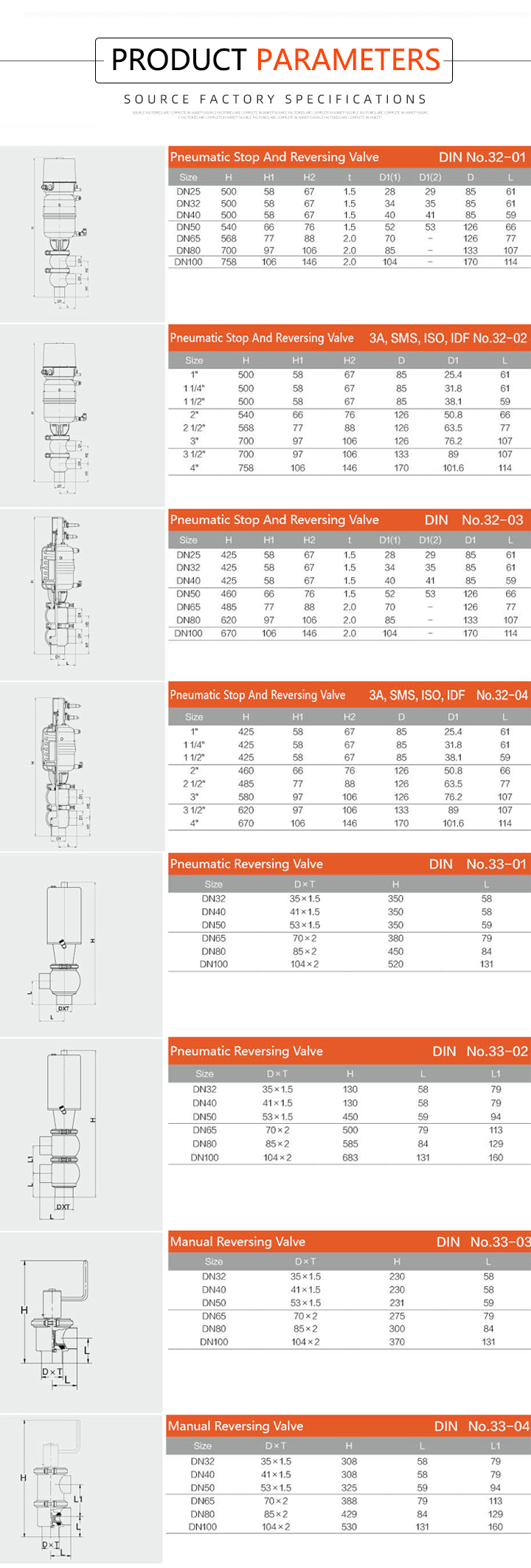

Technical Parameter
| Size available | 1/2"~4",DN10~DN100 |
| Max. working pressure | 147psi (10bar) |
| Control air pressure | 70 ~ 116psi (5 ~ 8bar) |
| Working temperature range | EPDM:-20 ~ 135°C |
| Sterilization temperature | 150°C, Max. 20 min |
| Pneumatic connection | R1/8" (BSP) |
| Finish Surface | <32Ra (<0.8um); Other finishes available upon request. |
| End connections | butt welded,tri clamp,male and female |
| Standard | DIN, 3A, SMS, RJT, IDF or others upon request |
| Flow Medium Parts | 304,304L,316L (1.4301,1.4307,1.4404) |
Applications
Sanitary reversing valve has very flexible design which meets sanitary requirements, and is mainly used in pipeline systems without contaminant or mixture. As a modern and widely used valve, it is mainly used in the wine brewing, dairy, beverage, and pharmaceutical industries.
Operating Principle
Sanitary reversing valve is remotely operated by means of compressed air or manual. By controlling the relative
position of valve plug, it makes the valve open or closed (shut-off type), or changes the flow direction of media.
Sanitary reversing valve can
be installed with smart controller.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
